2090PKR IntelliSOLAR Kit with Remote for 2-Tier Fountain

Assembled Length: 6 in
Assembled Width: 6 in
Assembly Required: Yes
Power Source: Solar with Battery

We've listened to your feedback and taken the time to revise our patented Solar-On-Demand technology and we've improved every aspect of it to take it to the next level. We're excited to announce that the result is our new patented IntelliSolar kit! We have not changed the dimensions of the solar panel so you can get this IntelliSolar panel without worrying if it will fit. Here are the new features and updates:

• BATTERY: IntelliSolar battery packs are Lithium-Ion which has a higher capacity, faster charge time, lower voltage, lower discharge rates and no memory effect. Switching to a Lithium-Ion battery which offers a greater range in voltage, allowed us to update the circuitry in the solar panel so the pump can start with lower voltage earlier in the morning and run later into the evening.

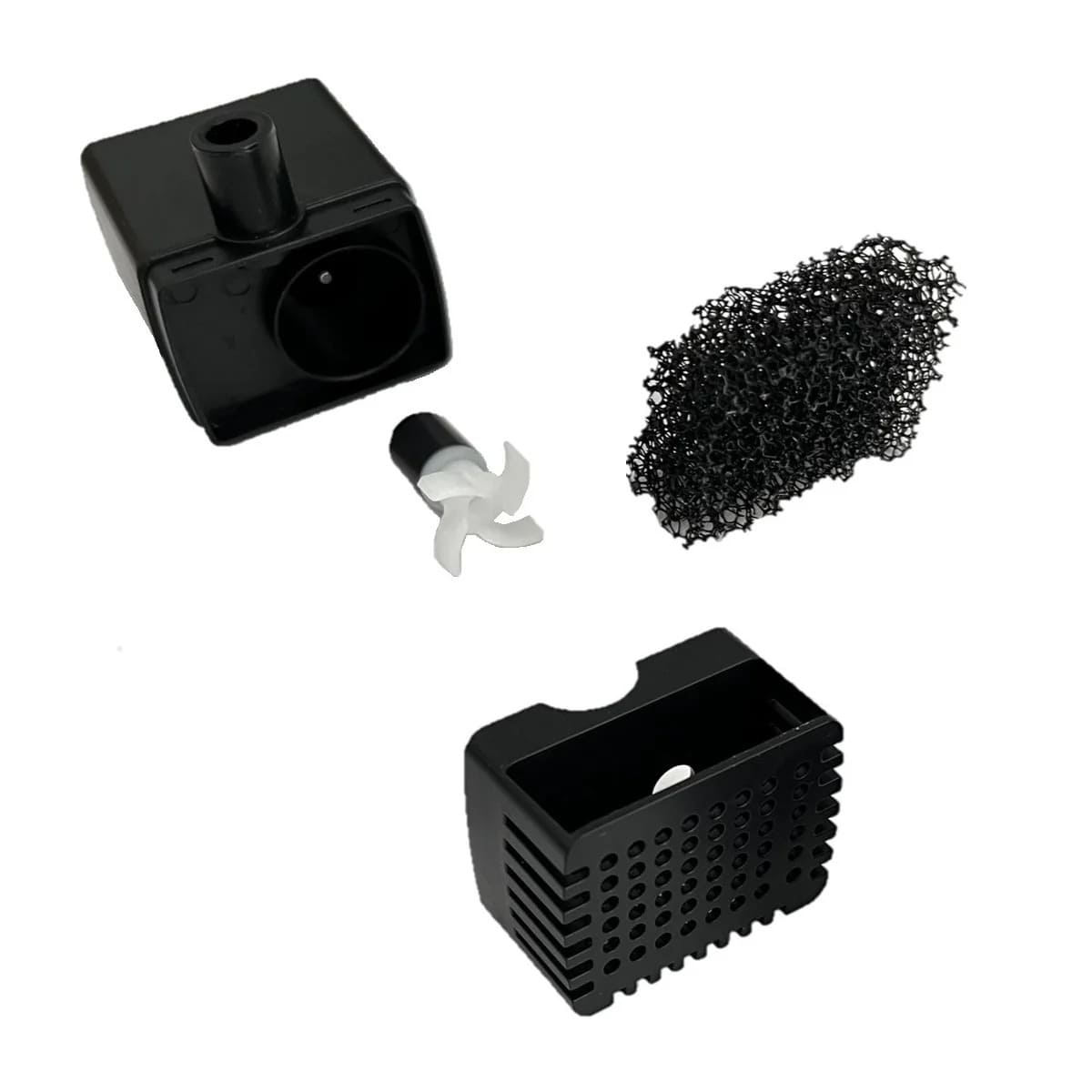

• PUMP: The fully redesigned IntelliSolar pump has less parts so all you have to do when cleaning is remove the plastic filter cover to get to the impeller fan. We added a water sensor so when the water level gets too low, and the sensor on the pump is dry it will automatically shut off until water is added. This new pump protection feature prolongs the overall life of the pump and eliminates any worries about it running dry.


• SOLAR PANEL: We removed the manual rotating on/off switch on the panel to eliminate a moving part that could potentially wear out over time and programmed it to use a remote control! We added 3 cable control clips under the panel to help keep the wiring neat and tidy. Our panels also come with the best quality crystalline solar available on the market.

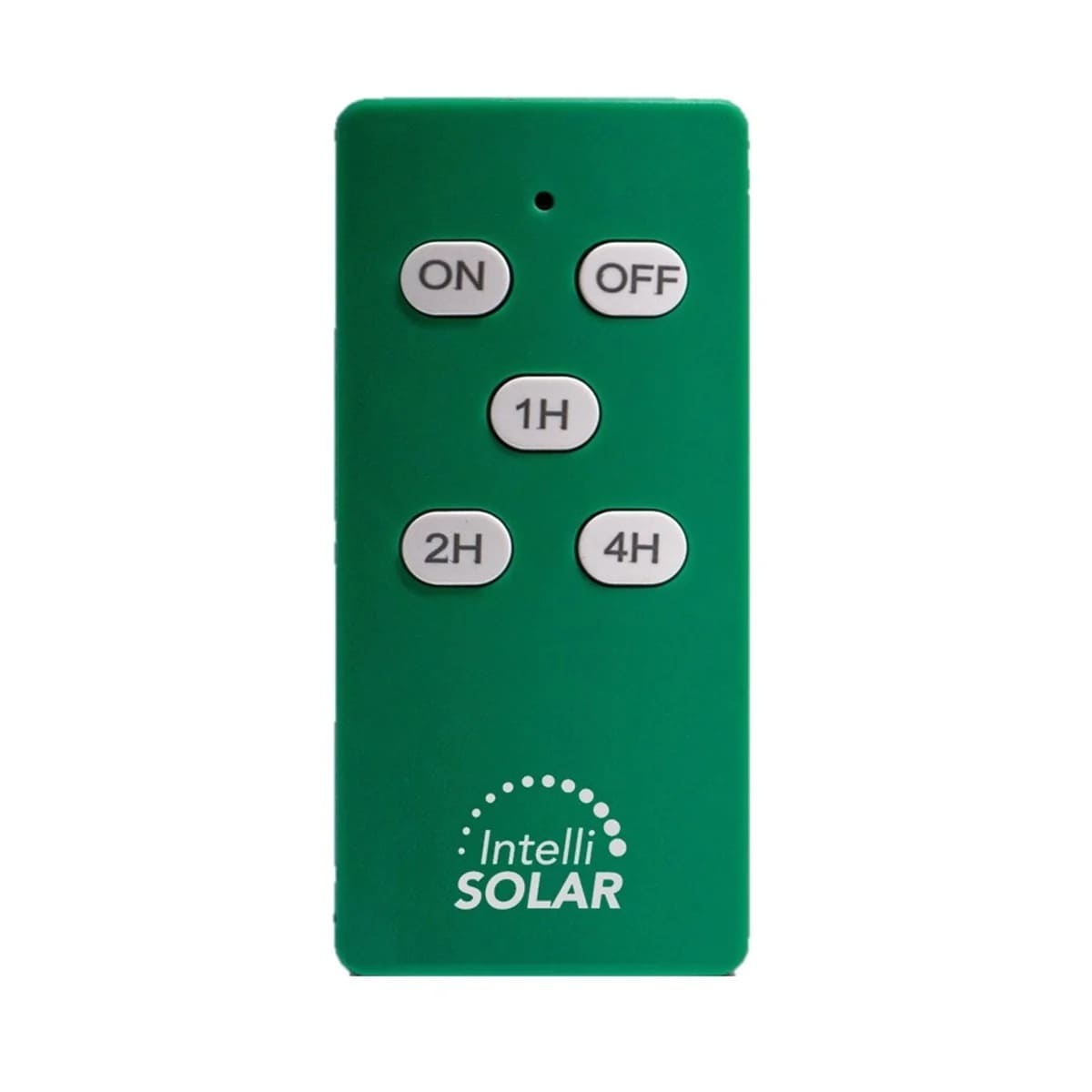

• REMOTE CONTROL: IntelliSolar comes with a remote control that allows you to easily switch between five different modes: On, Off, 1 Hour, 2 Hour, or 4 Hour timers so you can enjoy your fountain without completely draining the battery. The remote let you control it from a distance so you can avoid getting your hands wet/dirty whenever you want to turn it on or off. Best yet, if you own multiple IntelliSolar fountains, you can pair one remote to multiple fountains so you can turn them all on or off simultaneously with the push of a button on one remote.


• FOUNTAIN HEAD KIT: The outlet hole in the short nozzle and the holes around the 360 sprayer are smaller to improve spray performance.

• TUBE KIT: The 2 short plastic tubes that go from the pump up to the bottom of the panel have been replaced by 1 long plastic tube to make assembling the kit into the top tier easier and reduce the possibility of accidentally missing a tube which makes the pump be too high inside the fountain.

COMPONENTS

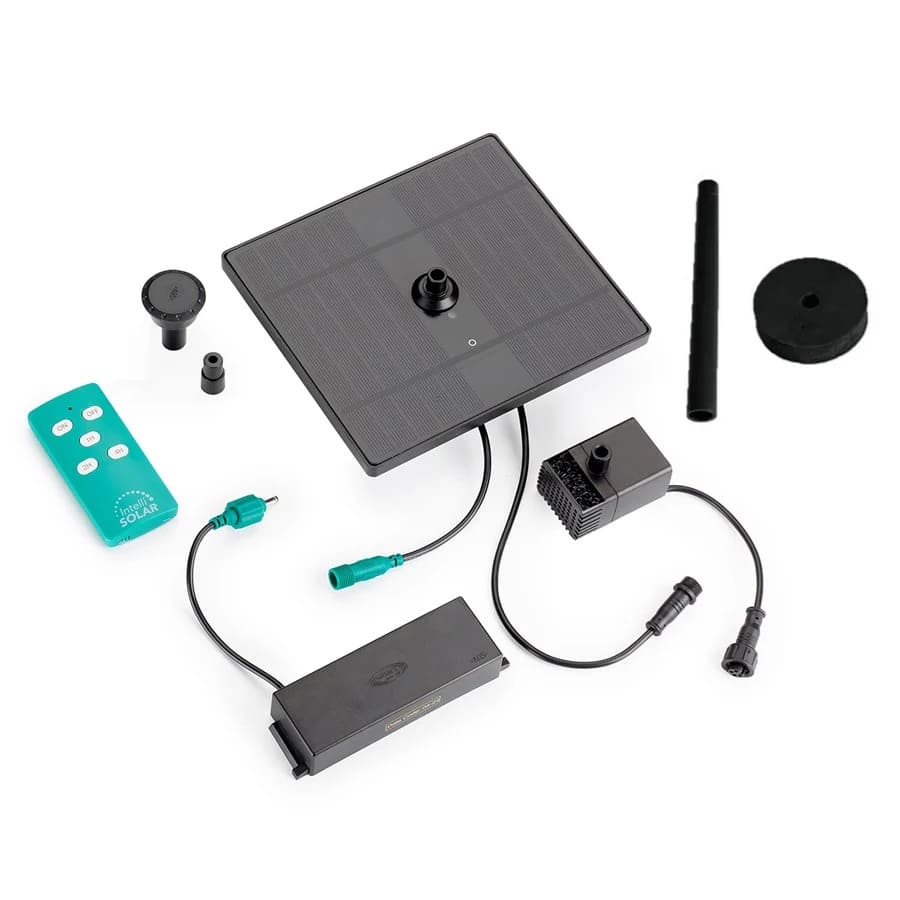

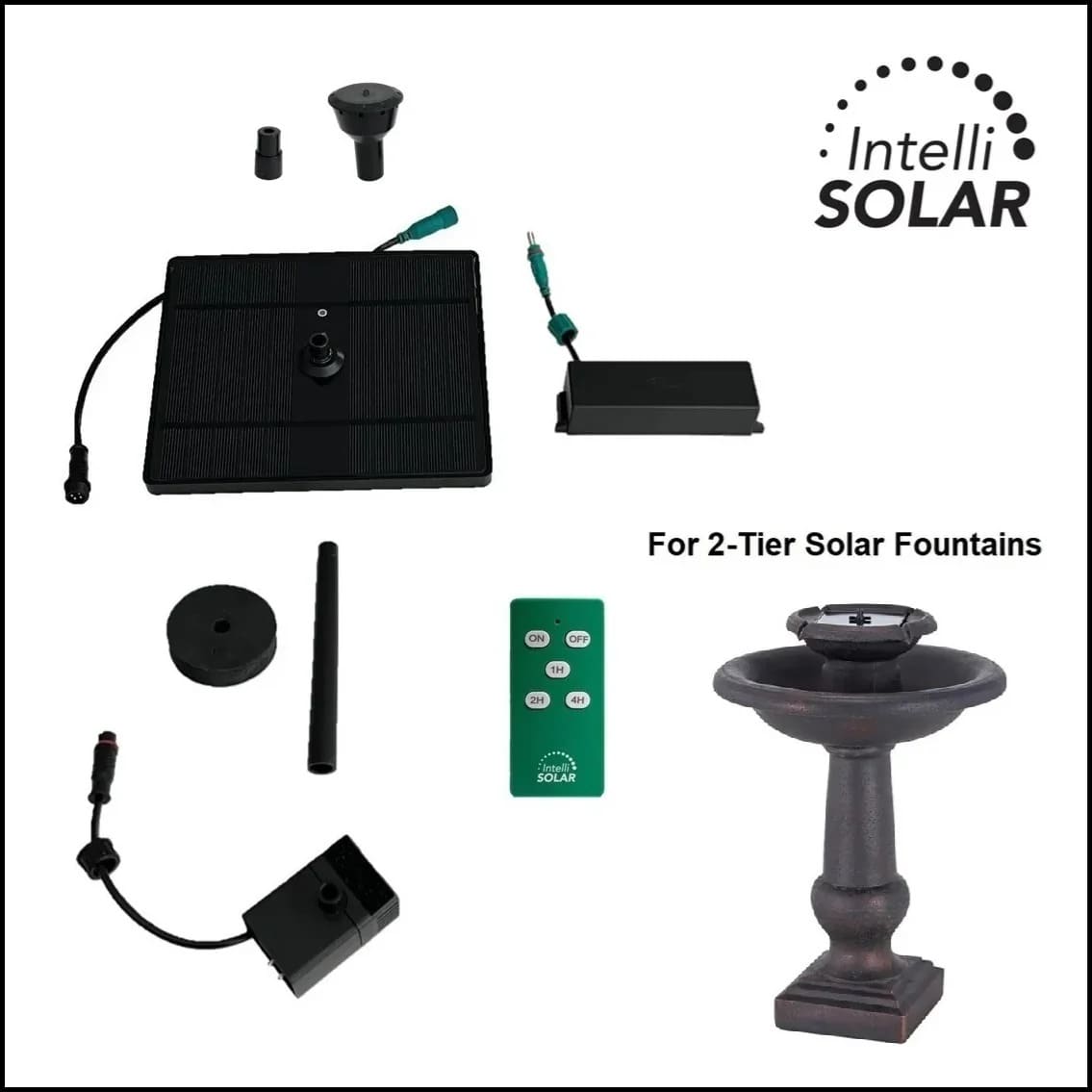

• What's Included:

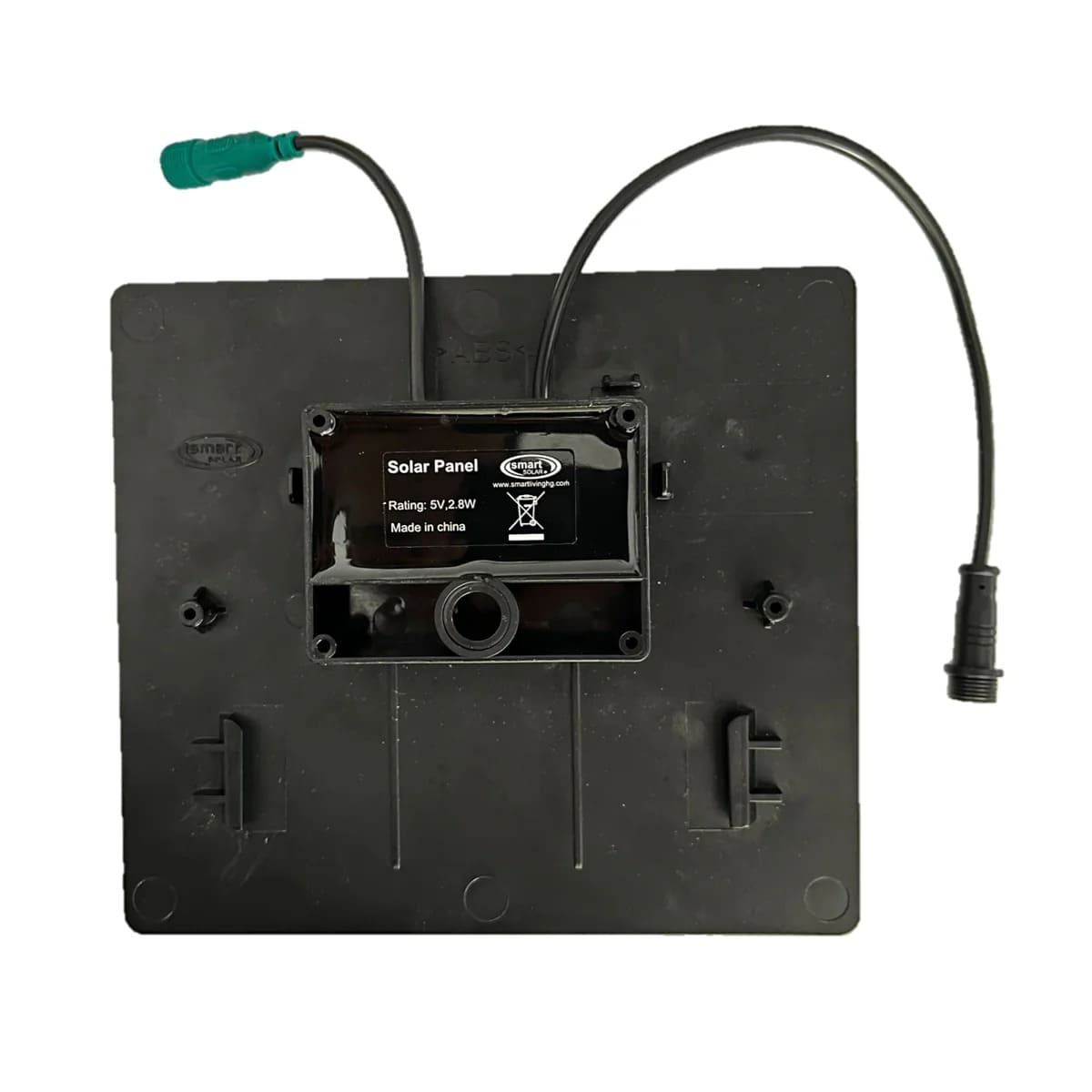

  -Solar Panel #GB2W8RQ (1-pin plug for battery, quad 4-pin plug for pump)

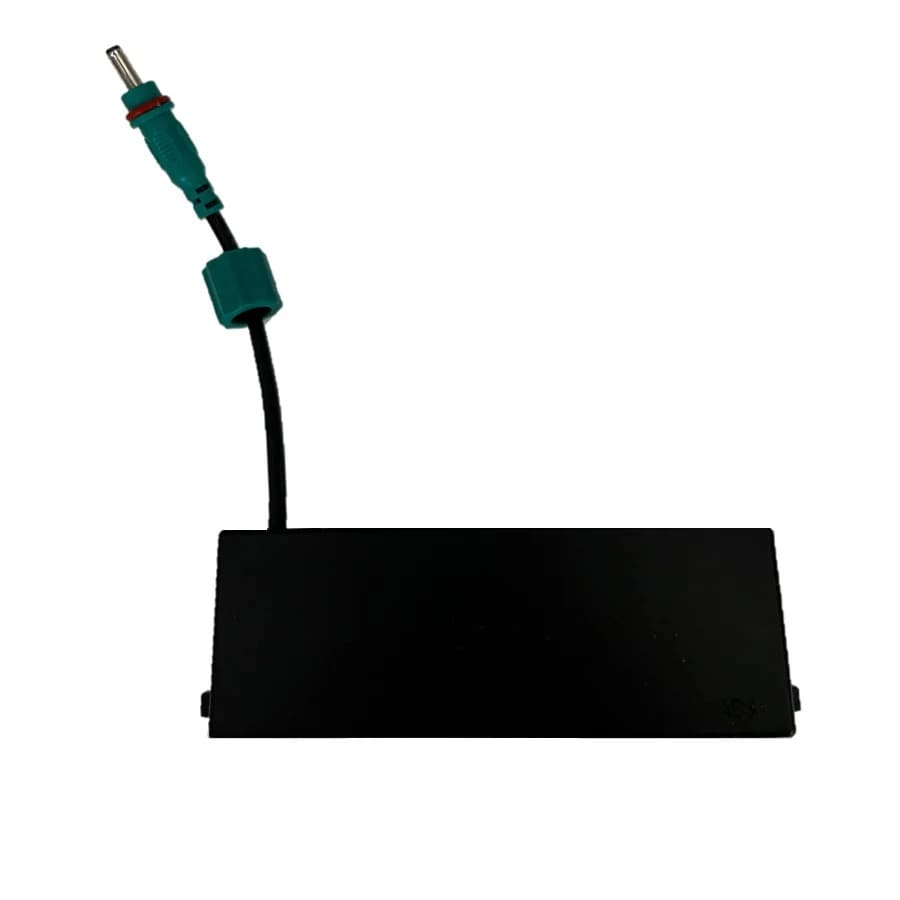

  -Battery Pack #BPL37V2000T (3.7V 2000mAh Li-Ion, green 1-pin plug)

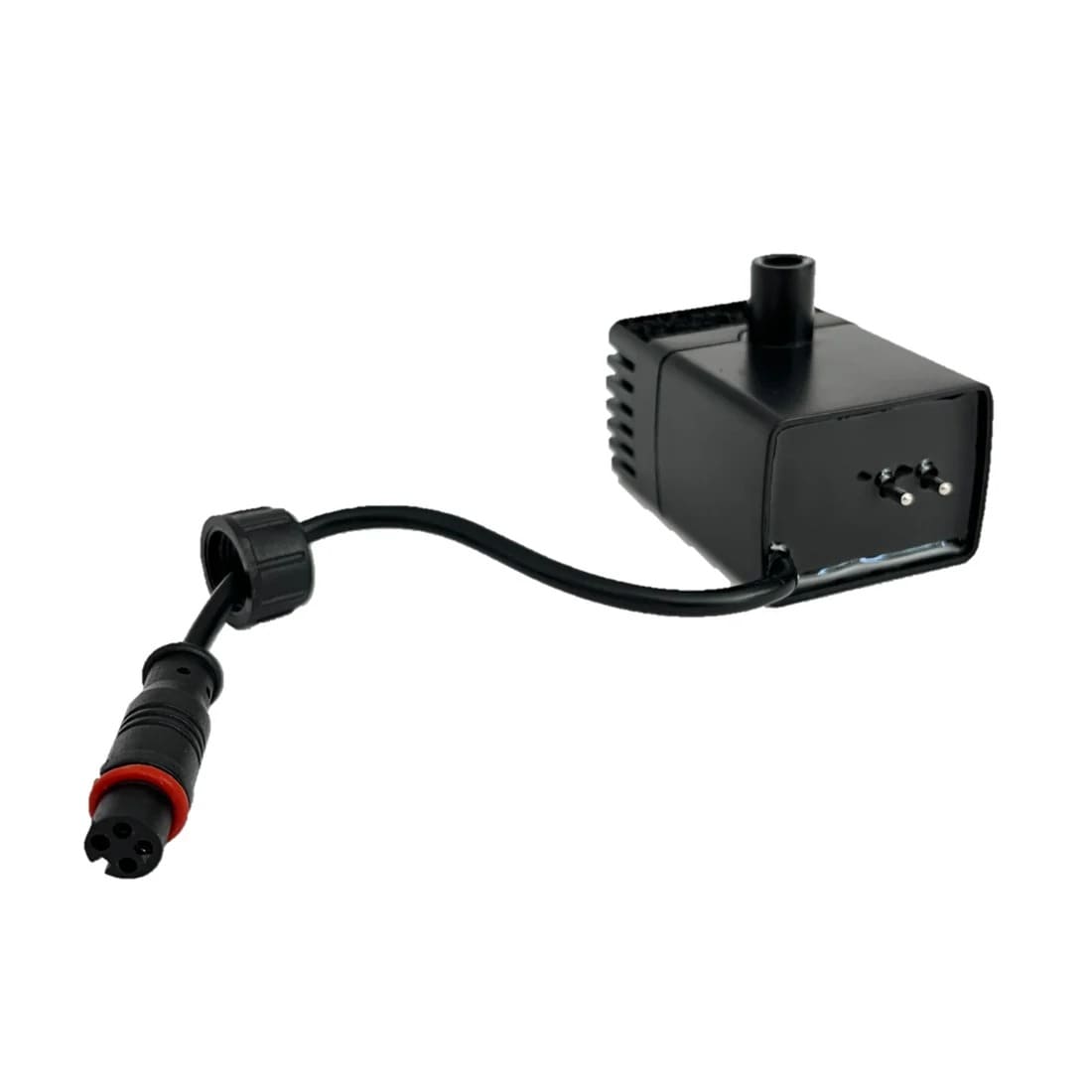

  -Pump #GPA4Q (with water sensor and quad 4-pin plug)

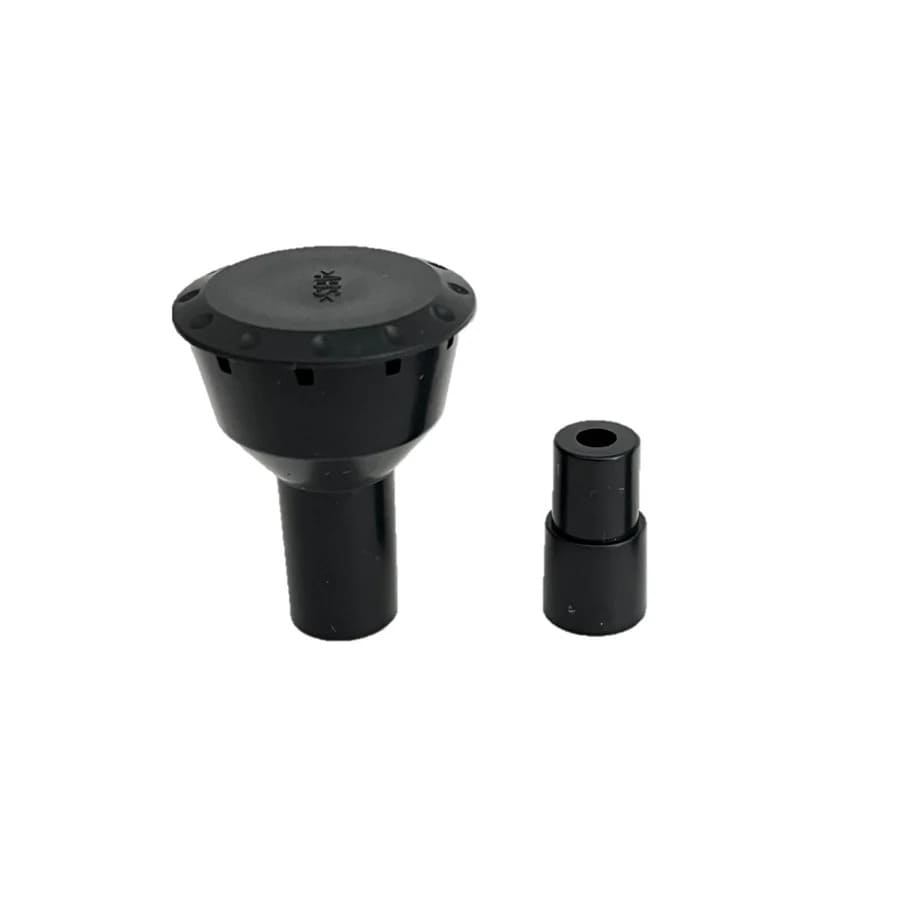

  -Fountain Head Kit #2090FHK (360* sprayer, short nozzle)

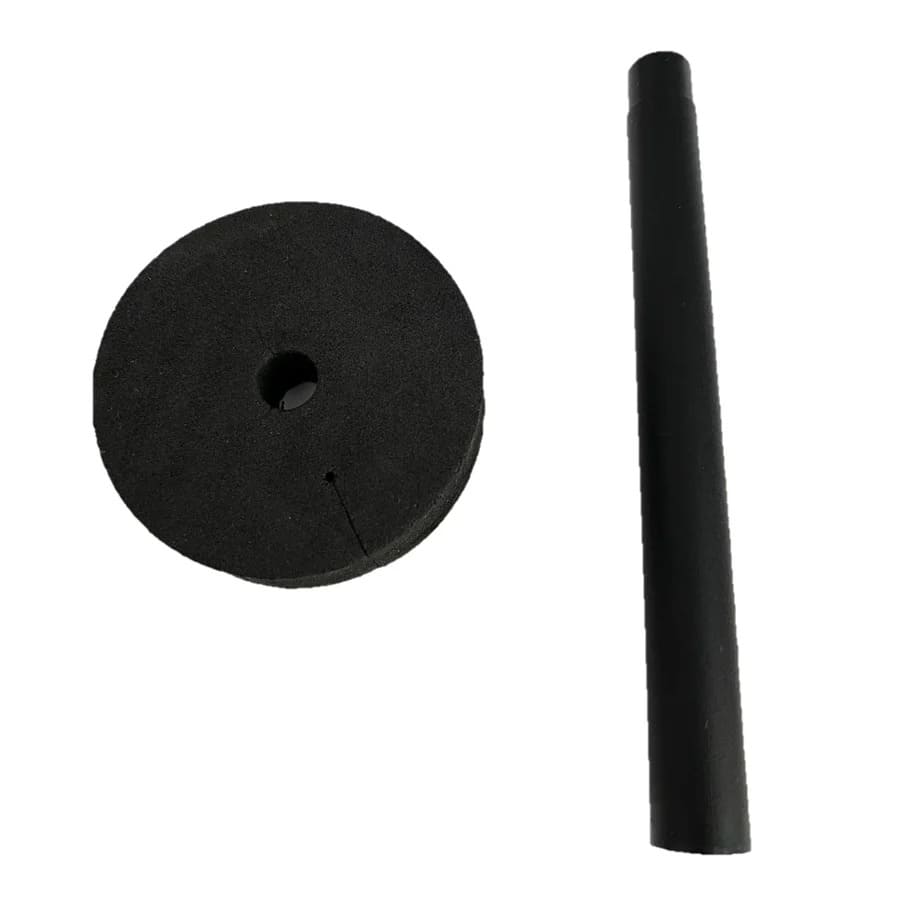

  -Tube Kit for 2-Tier Fountains #2090KIT (12cm / 4.75inch plastic tube and 5.5cm / 2.25inch wide foam disc)
  -Remote Control (with CR2025 battery)

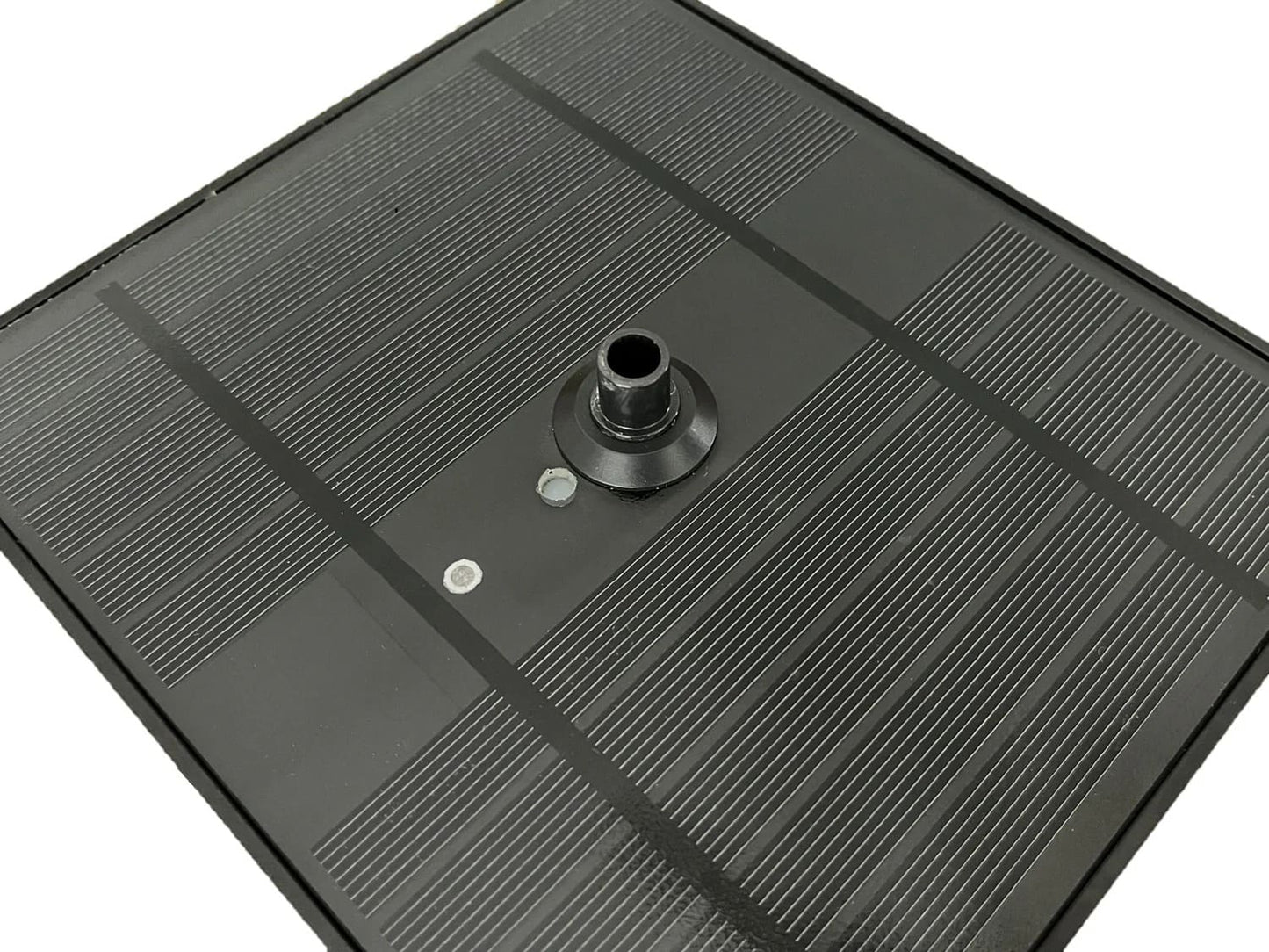

• Solar Panel Dimensions: approx 6 inch W x 6-5/8 inch L (15 cm W x 16-3/4 cm L)

• This kit is for use in 2-Tier Solar Fountains


• What's NOT Included:
  This item is a solar kit only. The 2-tier fountain (top tier, bowl, base/stand/pedestal) is not included and is just shown for reference.

SHIPPING:

• Shipping cost is already included in the price of the item

• Ships via US Mail

• If you order a replacement part and a full product and they are stocked in different warehouses they will ship separately

Instruction Manual

US Patent 12, 196, 192
© 2024

2 - 3 Business Days

To keep your Smart Solar Fountain in top condition, follow these care instructions:

• Water Maintenance: In strong sunlight or windy conditions, water may splash outside the basin. Regularly top off and change the water to keep it clean and free from debris.
• Winter Protection: If temperatures drop below 40ºF, empty the water and store the entire fountain indoors (garage, shed, or basement). Simply covering it outdoors is not sufficient. Damage caused by freezing temperatures is not covered under warranty. Proper storage ensures long-lasting performance and durability.

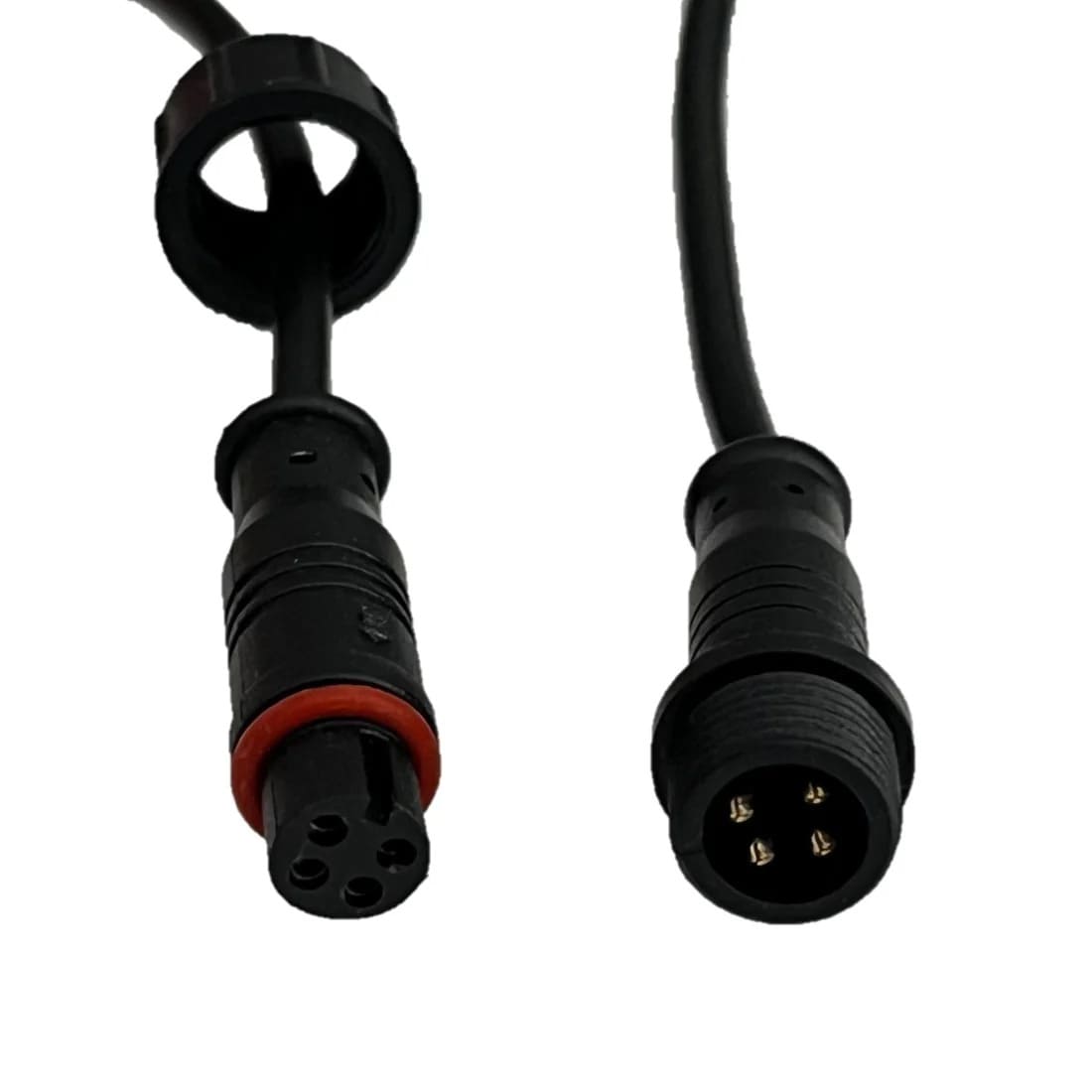

Plug Connection for Pump:

BEFORE USE: Ensure that the plug connection is water tight.

(Step 1) Line up arrows on plugs
(Step 2) Push plugs together until they touch the rubber o-ring.
(Step 3) Slide the threaded cap over the plug.
(Step 4) Turn the cap until completely tight.

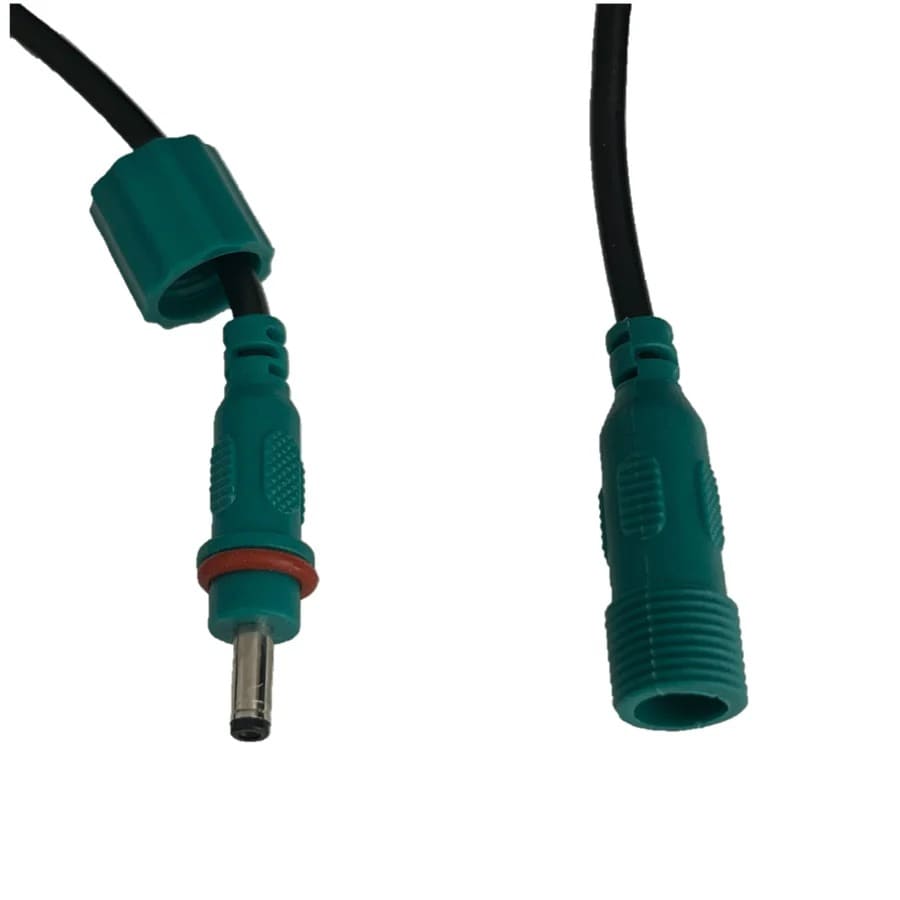

Plug Connection For Battery:

BEFORE USE: Ensure that the plug connection is water tight.
(Step 1) Push plugs together until they touch the rubber o-ring.
(Step 2) Slide the threaded cap over the plug.
(Step 3) Turn the cap until completely tight.

Performance:

To ensure peak performance, place your solar fountain in direct sunlight. The more sun it absorbs, the better it will function. Without direct exposure, the battery won’t charge, causing reduced performance or inactivity.

On cloudy days, if left on, the pump will stop once the battery is depleted. To recharge, switch it off and position it in direct sunlight for several hours. Once fully charged, it can run anywhere, in any weather, day or night. If the fountain moves into shade while operating, the battery will automatically keep the pump running.

Care Instructions:

• Spot clean as needed
• Vacuum or hose down
• Avoid bleach or bleach-based cleaners
• Wipe with a damp cloth
• Use a non-abrasive, neutral pH cleaner
• Clean with mild soap and water
